多代理主管¶

%%capture --no-stderr
%pip install -U langgraph langgraph-supervisor langchain-tavily "langchain[openai]"

import getpass
import os


def _set_if_undefined(var: str):
    if not os.environ.get(var):
        os.environ[var] = getpass.getpass(f"Please provide your {var}")


_set_if_undefined("OPENAI_API_KEY")
_set_if_undefined("TAVILY_API_KEY")

from langchain_tavily import TavilySearch

web_search = TavilySearch(max_results=3)
web_search_results = web_search.invoke("who is the mayor of NYC?")

print(web_search_results["results"][0]["content"])

from langgraph.prebuilt import create_react_agent

research_agent = create_react_agent(
    model="openai:gpt-4.1",
    tools=[web_search],
    prompt=(
        "You are a research agent.\n\n"
        "INSTRUCTIONS:\n"
        "- Assist ONLY with research-related tasks, DO NOT do any math\n"
        "- After you're done with your tasks, respond to the supervisor directly\n"
        "- Respond ONLY with the results of your work, do NOT include ANY other text."
    ),
    name="research_agent",
)

from langchain_core.messages import convert_to_messages


def pretty_print_message(message, indent=False):
    pretty_message = message.pretty_repr(html=True)
    if not indent:
        print(pretty_message)
        return

    indented = "\n".join("\t" + c for c in pretty_message.split("\n"))
    print(indented)


def pretty_print_messages(update, last_message=False):
    is_subgraph = False
    if isinstance(update, tuple):
        ns, update = update
        # skip parent graph updates in the printouts
        if len(ns) == 0:
            return

        graph_id = ns[-1].split(":")[0]
        print(f"Update from subgraph {graph_id}:")
        print("\n")
        is_subgraph = True

    for node_name, node_update in update.items():
        update_label = f"Update from node {node_name}:"
        if is_subgraph:
            update_label = "\t" + update_label

        print(update_label)
        print("\n")

        messages = convert_to_messages(node_update["messages"])
        if last_message:
            messages = messages[-1:]

        for m in messages:
            pretty_print_message(m, indent=is_subgraph)
        print("\n")

for chunk in research_agent.stream(
    {"messages": [{"role": "user", "content": "who is the mayor of NYC?"}]}
):
    pretty_print_messages(chunk)

def add(a: float, b: float):
    """Add two numbers."""
    return a + b


def multiply(a: float, b: float):
    """Multiply two numbers."""
    return a * b


def divide(a: float, b: float):
    """Divide two numbers."""
    return a / b


math_agent = create_react_agent(
    model="openai:gpt-4.1",
    tools=[add, multiply, divide],
    prompt=(
        "You are a math agent.\n\n"
        "INSTRUCTIONS:\n"
        "- Assist ONLY with math-related tasks\n"
        "- After you're done with your tasks, respond to the supervisor directly\n"
        "- Respond ONLY with the results of your work, do NOT include ANY other text."
    ),
    name="math_agent",
)

for chunk in math_agent.stream(
    {"messages": [{"role": "user", "content": "what's (3 + 5) x 7"}]}
):
    pretty_print_messages(chunk)

from langgraph_supervisor import create_supervisor
from langchain.chat_models import init_chat_model

supervisor = create_supervisor(
    model=init_chat_model("openai:gpt-4.1"),
    agents=[research_agent, math_agent],
    prompt=(
        "You are a supervisor managing two agents:\n"
        "- a research agent. Assign research-related tasks to this agent\n"
        "- a math agent. Assign math-related tasks to this agent\n"
        "Assign work to one agent at a time, do not call agents in parallel.\n"
        "Do not do any work yourself."
    ),
    add_handoff_back_messages=True,
    output_mode="full_history",
).compile()

from IPython.display import display, Image

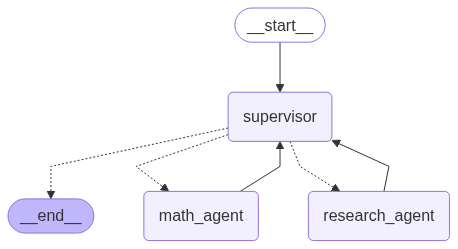

display(Image(supervisor.get_graph().draw_mermaid_png()))

for chunk in supervisor.stream(
    {
        "messages": [
            {
                "role": "user",
                "content": "find US and New York state GDP in 2024. what % of US GDP was New York state?",
            }
        ]
    },
):
    pretty_print_messages(chunk, last_message=True)

final_message_history = chunk["supervisor"]["messages"]

from typing import Annotated
from langchain_core.tools import tool, InjectedToolCallId
from langgraph.prebuilt import InjectedState
from langgraph.graph import StateGraph, START, MessagesState
from langgraph.types import Command


def create_handoff_tool(*, agent_name: str, description: str | None = None):
    name = f"transfer_to_{agent_name}"
    description = description or f"Ask {agent_name} for help."

    @tool(name, description=description)
    def handoff_tool(
        state: Annotated[MessagesState, InjectedState],
        tool_call_id: Annotated[str, InjectedToolCallId],
    ) -> Command:
        tool_message = {
            "role": "tool",
            "content": f"Successfully transferred to {agent_name}",
            "name": name,
            "tool_call_id": tool_call_id,
        }
        return Command(
            goto=agent_name,  # (1)!
            update={**state, "messages": state["messages"] + [tool_message]},  # (2)!
            graph=Command.PARENT,  # (3)!
        )

    return handoff_tool


# Handoffs
assign_to_research_agent = create_handoff_tool(
    agent_name="research_agent",
    description="Assign task to a researcher agent.",
)

assign_to_math_agent = create_handoff_tool(
    agent_name="math_agent",
    description="Assign task to a math agent.",
)

supervisor_agent = create_react_agent(
    model="openai:gpt-4.1",
    tools=[assign_to_research_agent, assign_to_math_agent],
    prompt=(
        "You are a supervisor managing two agents:\n"
        "- a research agent. Assign research-related tasks to this agent\n"
        "- a math agent. Assign math-related tasks to this agent\n"
        "Assign work to one agent at a time, do not call agents in parallel.\n"
        "Do not do any work yourself."
    ),
    name="supervisor",
)

from langgraph.graph import END

# Define the multi-agent supervisor graph
supervisor = (
    StateGraph(MessagesState)
    # NOTE: `destinations` is only needed for visualization and doesn't affect runtime behavior
    .add_node(supervisor_agent, destinations=("research_agent", "math_agent", END))
    .add_node(research_agent)
    .add_node(math_agent)
    .add_edge(START, "supervisor")
    # always return back to the supervisor
    .add_edge("research_agent", "supervisor")
    .add_edge("math_agent", "supervisor")
    .compile()
)

from IPython.display import display, Image

display(Image(supervisor.get_graph().draw_mermaid_png()))

for chunk in supervisor.stream(
    {
        "messages": [
            {
                "role": "user",
                "content": "find US and New York state GDP in 2024. what % of US GDP was New York state?",
            }
        ]
    },
):
    pretty_print_messages(chunk, last_message=True)

final_message_history = chunk["supervisor"]["messages"]

from langgraph.types import Send


def create_task_description_handoff_tool(
    *, agent_name: str, description: str | None = None
):
    name = f"transfer_to_{agent_name}"
    description = description or f"Ask {agent_name} for help."

    @tool(name, description=description)
    def handoff_tool(
        # this is populated by the supervisor LLM
        task_description: Annotated[
            str,
            "Description of what the next agent should do, including all of the relevant context.",
        ],
        # these parameters are ignored by the LLM
        state: Annotated[MessagesState, InjectedState],
    ) -> Command:
        task_description_message = {"role": "user", "content": task_description}
        agent_input = {**state, "messages": [task_description_message]}
        return Command(
            goto=[Send(agent_name, agent_input)],
            graph=Command.PARENT,
        )

    return handoff_tool


assign_to_research_agent_with_description = create_task_description_handoff_tool(
    agent_name="research_agent",
    description="Assign task to a researcher agent.",
)

assign_to_math_agent_with_description = create_task_description_handoff_tool(
    agent_name="math_agent",
    description="Assign task to a math agent.",
)

supervisor_agent_with_description = create_react_agent(
    model="openai:gpt-4.1",
    tools=[
        assign_to_research_agent_with_description,
        assign_to_math_agent_with_description,
    ],
    prompt=(
        "You are a supervisor managing two agents:\n"
        "- a research agent. Assign research-related tasks to this assistant\n"
        "- a math agent. Assign math-related tasks to this assistant\n"
        "Assign work to one agent at a time, do not call agents in parallel.\n"
        "Do not do any work yourself."
    ),
    name="supervisor",
)

supervisor_with_description = (
    StateGraph(MessagesState)
    .add_node(
        supervisor_agent_with_description, destinations=("research_agent", "math_agent")
    )
    .add_node(research_agent)
    .add_node(math_agent)
    .add_edge(START, "supervisor")
    .add_edge("research_agent", "supervisor")
    .add_edge("math_agent", "supervisor")
    .compile()
)

for chunk in supervisor_with_description.stream(
    {
        "messages": [
            {
                "role": "user",
                "content": "find US and New York state GDP in 2024. what % of US GDP was New York state?",
            }
        ]
    },
    subgraphs=True,
):
    pretty_print_messages(chunk, last_message=True)
