Multi-agent¶

单个代理可能难以胜任需要专精多个领域或管理多种工具的任务。为了解决这个问题，你可以将你的代理分解成更小、更独立的代理，并将它们组合成一个 multi-agent system。

在多代理系统中，代理之间需要进行通信。它们通过 handoffs 进行通信——这是一个原始操作，用于描述将控制权交给哪个代理以及要发送给该代理的载荷（payload）。

两种最流行的多代理架构是：

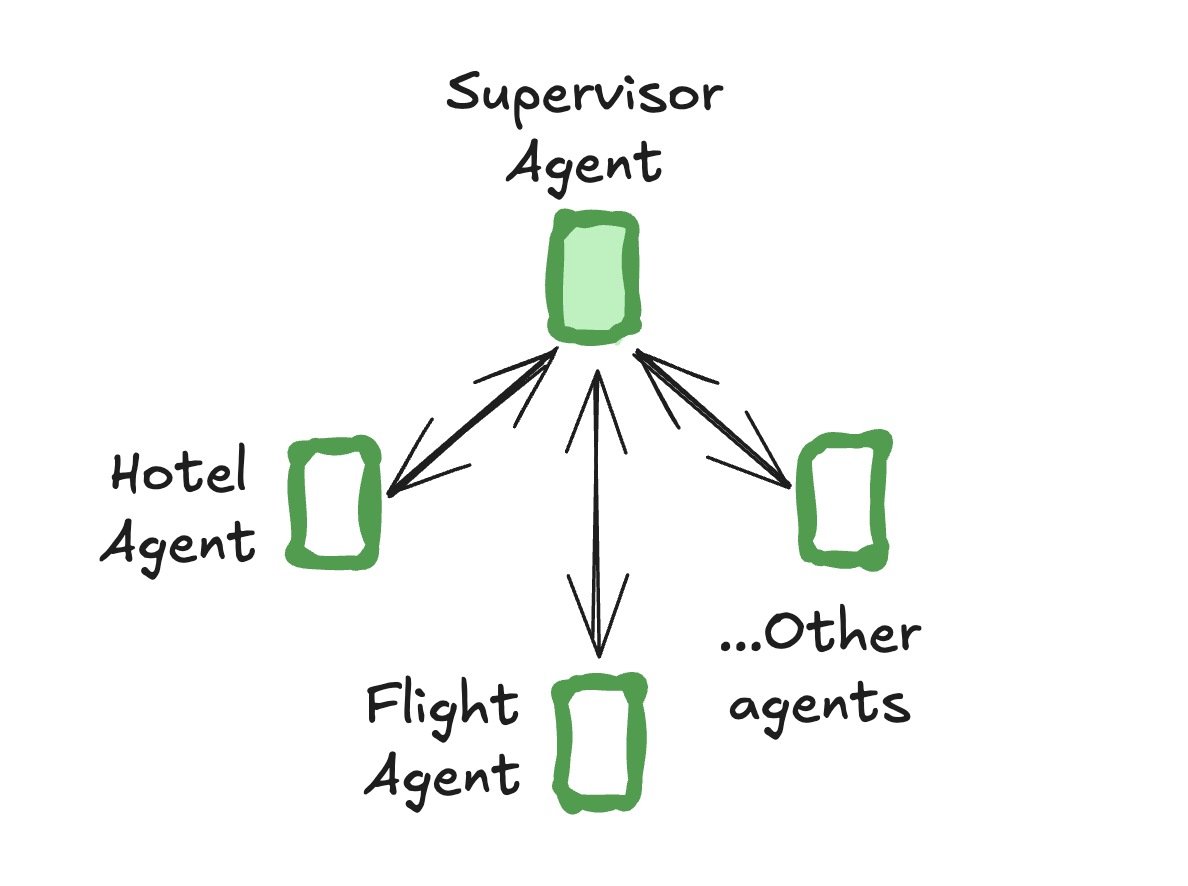

supervisor — 单个代理由一个集中的 supervisor 代理协调。Supervisor 控制所有通信流程和任务委派，并根据当前上下文和任务要求决定调用哪个代理。

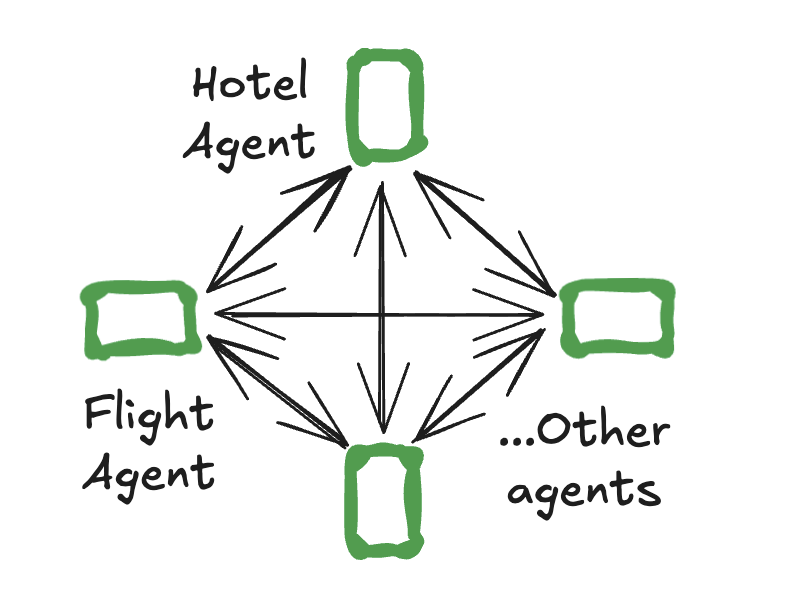

swarm — 代理根据其专长动态地将控制权交给彼此。系统会记住哪个代理是最后活动的，以确保在后续交互中，会话能与该代理恢复。

Supervisor¶

Supervisor

使用 langgraph-supervisor 库来创建 supervisor 多代理系统：

pip install langgraph-supervisor

^{API Reference: ChatOpenAI | create_react_agent | create_supervisor}

from langchain_openai import ChatOpenAI
from langgraph.prebuilt import create_react_agent
from langgraph_supervisor import create_supervisor

def book_hotel(hotel_name: str):
    """Book a hotel"""
    return f"Successfully booked a stay at {hotel_name}."

def book_flight(from_airport: str, to_airport: str):
    """Book a flight"""
    return f"Successfully booked a flight from {from_airport} to {to_airport}."

flight_assistant = create_react_agent(
    model="openai:gpt-4o",
    tools=[book_flight],
    prompt="You are a flight booking assistant",
    name="flight_assistant"
)

hotel_assistant = create_react_agent(
    model="openai:gpt-4o",
    tools=[book_hotel],
    prompt="You are a hotel booking assistant",
    name="hotel_assistant"
)

supervisor = create_supervisor(
    agents=[flight_assistant, hotel_assistant],
    model=ChatOpenAI(model="gpt-4o"),
    prompt=(
        "You manage a hotel booking assistant and a"
        "flight booking assistant. Assign work to them."
    )
).compile()

for chunk in supervisor.stream(
    {
        "messages": [
            {
                "role": "user",
                "content": "book a flight from BOS to JFK and a stay at McKittrick Hotel"
            }
        ]
    }
):
    print(chunk)
    print("\n")

Swarm¶

Swarm

使用 langgraph-swarm 库来创建 swarm 多代理系统：

pip install langgraph-swarm

^{API Reference: create_react_agent | create_swarm | create_handoff_tool}

from langgraph.prebuilt import create_react_agent
from langgraph_swarm import create_swarm, create_handoff_tool

transfer_to_hotel_assistant = create_handoff_tool(
    agent_name="hotel_assistant",
    description="Transfer user to the hotel-booking assistant.",
)
transfer_to_flight_assistant = create_handoff_tool(
    agent_name="flight_assistant",
    description="Transfer user to the flight-booking assistant.",
)

flight_assistant = create_react_agent(
    model="anthropic:claude-3-5-sonnet-latest",
    tools=[book_flight, transfer_to_hotel_assistant],
    prompt="You are a flight booking assistant",
    name="flight_assistant"
)
hotel_assistant = create_react_agent(
    model="anthropic:claude-3-5-sonnet-latest",
    tools=[book_hotel, transfer_to_flight_assistant],
    prompt="You are a hotel booking assistant",
    name="hotel_assistant"
)

swarm = create_swarm(
    agents=[flight_assistant, hotel_assistant],
    default_active_agent="flight_assistant"
).compile()

for chunk in swarm.stream(
    {
        "messages": [
            {
                "role": "user",
                "content": "book a flight from BOS to JFK and a stay at McKittrick Hotel"
            }
        ]
    }
):
    print(chunk)
    print("\n")

Handoffs¶

多代理交互中的一个常见模式是 handoffs，即一个代理将控制权“交接”给另一个代理。Handoffs 允许你指定：

destination: 要导航到的目标代理
payload: 要传递给该代理的信息

langgraph-supervisor（supervisor 交接给单个代理）和 langgraph-swarm（单个代理可以交接给其他代理）都使用此模式。

要使用 create_react_agent 实现 handoffs，你需要：

创建一个可以转移控制权给另一个代理的特殊工具

def transfer_to_bob():
    """Transfer to bob."""
    return Command(
        # name of the agent (node) to go to
        goto="bob",
        # data to send to the agent
        update={"messages": [...]},
        # indicate to LangGraph that we need to navigate to
        # agent node in a parent graph
        graph=Command.PARENT,
    )

创建具有 handoff 工具访问权限的单个代理：

flight_assistant = create_react_agent(
    ..., tools=[book_flight, transfer_to_hotel_assistant]
)
hotel_assistant = create_react_agent(
    ..., tools=[book_hotel, transfer_to_flight_assistant]
)

定义一个包含单个代理作为节点的父图：

from langgraph.graph import StateGraph, MessagesState
multi_agent_graph = (
    StateGraph(MessagesState)
    .add_node(flight_assistant)
    .add_node(hotel_assistant)
    ...
)

综上所述，你可以通过以下方式实现一个简单的多代理系统，包含两个代理——一个航班预订助手和一个酒店预订助手：

^{API Reference: tool | InjectedToolCallId | create_react_agent | InjectedState | StateGraph | START | Command}

from typing import Annotated
from langchain_core.tools import tool, InjectedToolCallId
from langgraph.prebuilt import create_react_agent, InjectedState
from langgraph.graph import StateGraph, START, MessagesState
from langgraph.types import Command

def create_handoff_tool(*, agent_name: str, description: str | None = None):
    name = f"transfer_to_{agent_name}"
    description = description or f"Transfer to {agent_name}"

    @tool(name, description=description)
    def handoff_tool(
        state: Annotated[MessagesState, InjectedState], # (1)!
        tool_call_id: Annotated[str, InjectedToolCallId],
    ) -> Command:
        tool_message = {
            "role": "tool",
            "content": f"Successfully transferred to {agent_name}",
            "name": name,
            "tool_call_id": tool_call_id,
        }
        return Command(  # (2)!
            goto=agent_name,  # (3)!
            update={"messages": state["messages"] + [tool_message]},  # (4)!
            graph=Command.PARENT,  # (5)!
        )
    return handoff_tool

# Handoffs
transfer_to_hotel_assistant = create_handoff_tool(
    agent_name="hotel_assistant",
    description="Transfer user to the hotel-booking assistant.",
)
transfer_to_flight_assistant = create_handoff_tool(
    agent_name="flight_assistant",
    description="Transfer user to the flight-booking assistant.",
)

# Simple agent tools
def book_hotel(hotel_name: str):
    """Book a hotel"""
    return f"Successfully booked a stay at {hotel_name}."

def book_flight(from_airport: str, to_airport: str):
    """Book a flight"""
    return f"Successfully booked a flight from {from_airport} to {to_airport}."

# Define agents
flight_assistant = create_react_agent(
    model="anthropic:claude-3-5-sonnet-latest",
    tools=[book_flight, transfer_to_hotel_assistant],
    prompt="You are a flight booking assistant",
    name="flight_assistant"
)
hotel_assistant = create_react_agent(
    model="anthropic:claude-3-5-sonnet-latest",
    tools=[book_hotel, transfer_to_flight_assistant],
    prompt="You are a hotel booking assistant",
    name="hotel_assistant"
)

# Define multi-agent graph
multi_agent_graph = (
    StateGraph(MessagesState)
    .add_node(flight_assistant)
    .add_node(hotel_assistant)
    .add_edge(START, "flight_assistant")
    .compile()
)

# Run the multi-agent graph
for chunk in multi_agent_graph.stream(
    {
        "messages": [
            {
                "role": "user",
                "content": "book a flight from BOS to JFK and a stay at McKittrick Hotel"
            }
        ]
    }
):
    print(chunk)
    print("\n")

Access agent's state
The Command primitive allows specifying a state update and a node transition as a single operation, making it useful for implementing handoffs.
Name of the agent or node to hand off to.
Take the agent's messages and add them to the parent's state as part of the handoff. The next agent will see the parent state.
Indicate to LangGraph that we need to navigate to agent node in a parent multi-agent graph.

Note

This handoff implementation assumes that:

each agent receives overall message history (across all agents) in the multi-agent system as its input
each agent outputs its internal messages history to the overall message history of the multi-agent system

Check out LangGraph supervisor and swarm documentation to learn how to customize handoffs.
